Isolerad USB till RS485-omvandlare, -25 ° C ~ +75 ° C
945,00 SEK
Ekskl. moms
USB till RS485-omvandlare, isolerad
1 x RS485 7-polig terminalblock
1 x USB-B
Hastighet: 300 ~ 115200 bps
För USB 1.1 / 2.0 (High Speed)
2500 VDC-isolering på RS485
till DIN-skena montering
Ingen extern strömförsörjning krävs
Input +5 VDC från USB-port
OS-stöd WIN 98 / ME / 2000 / XP (32 / 64- bit) / Vista (32/64-bitars) / 7 (32/64-bitars) / 8 (32/64-bitars) / 10 / Linux
Driftstemperatur. -25 ° C ~ +75 ° C
USB-kabel (1,8m) ingår
Antal
Fysiskt i lager
close
close
Specifikationer
| Övrig | Power and data flow indicator for troubleshooting |
|---|---|
| Dimensioner | (W x H x D) 52 mm x 87 mm x 27 mm |
| Driftstemperatur | -25 °C ~ +75 °C |
| Forsyning | No External Power Supply required |
| Hastighed | 300 ~ 115200 bps |
| Isolation | 2500 VDC Isolation Protection on the RS-485 side |
| Montering | Tiny packaging fits on your DIN-Rail |
| OS SUPPORT | Driver Supports Windows 98/ME/2000/XP (32/64-bit)/Vista (32/64-bit)/ 7 (32/64-bit)/8 (32/64-bit)/10/Linux |

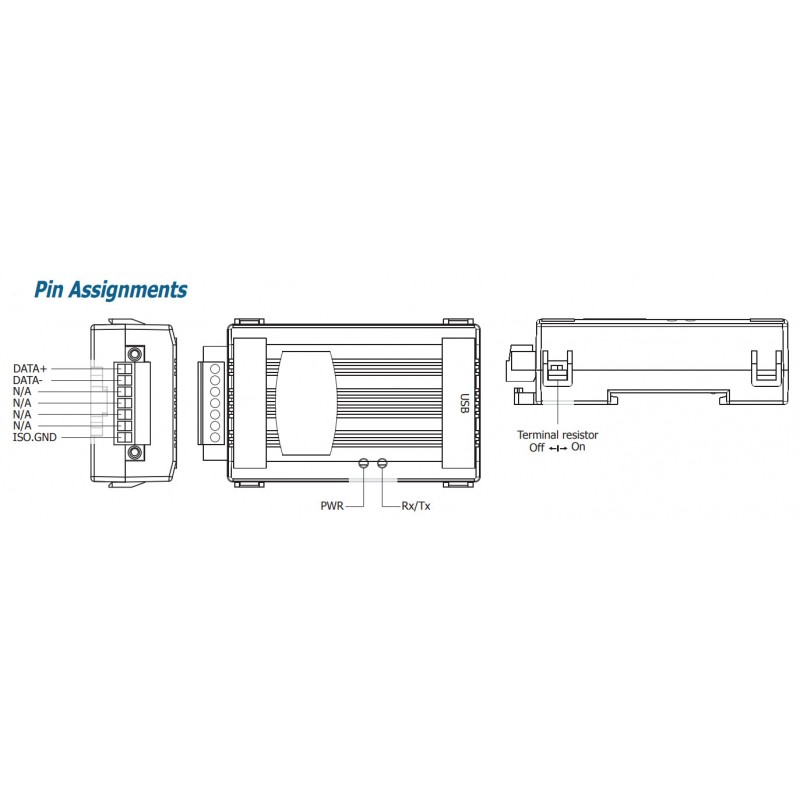

| Stik | RS-485: Removable 7-Pin Terminal Block USB: Type B |
| USB | Fully Compliant with the USB 1.1/2.0 (High Speed) |

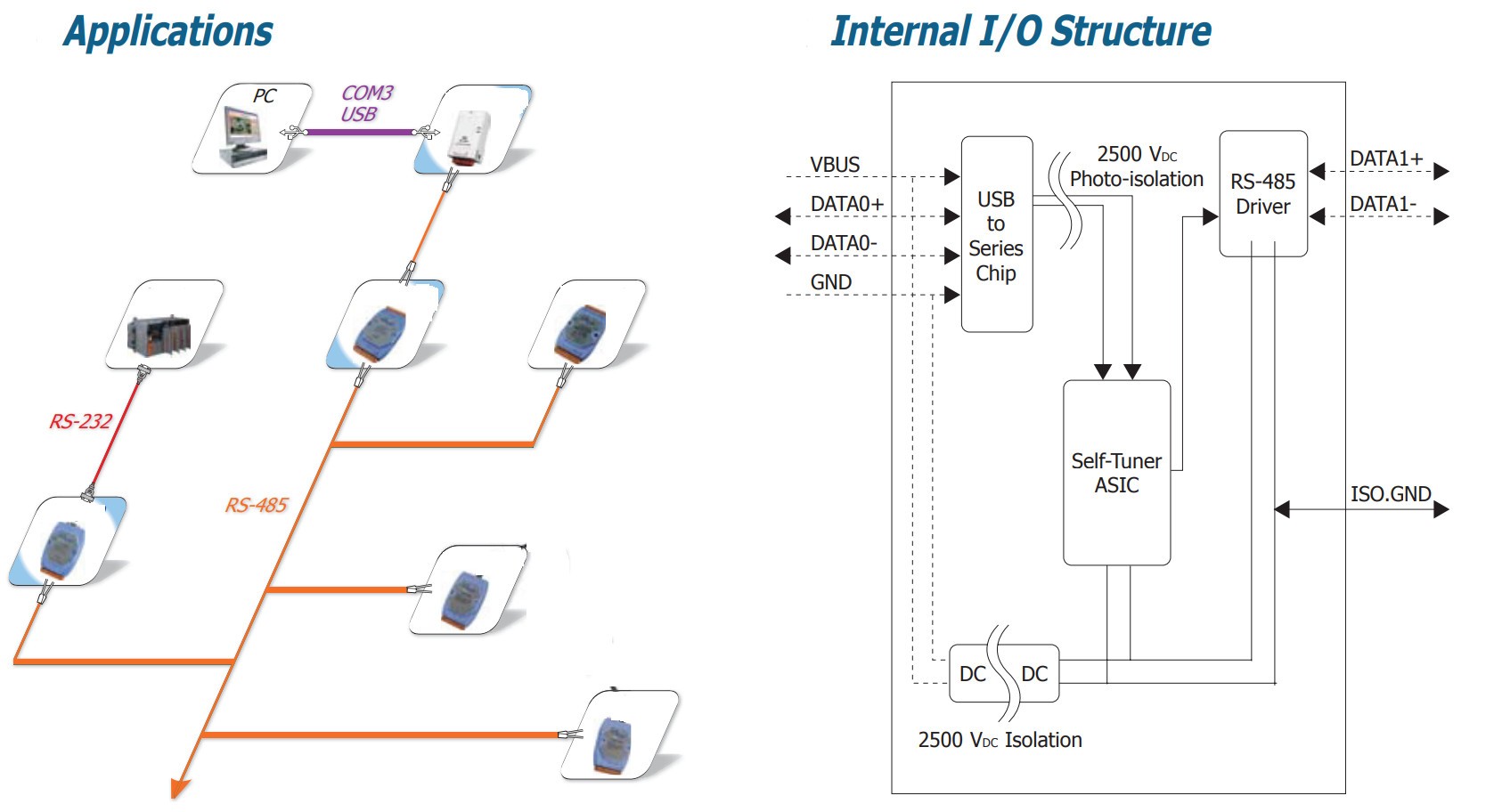

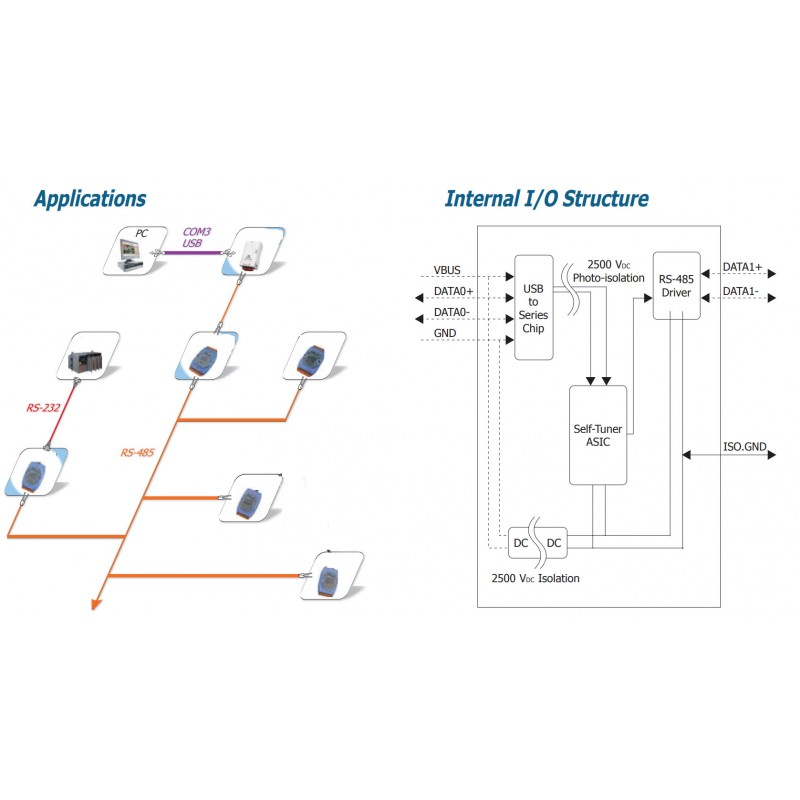

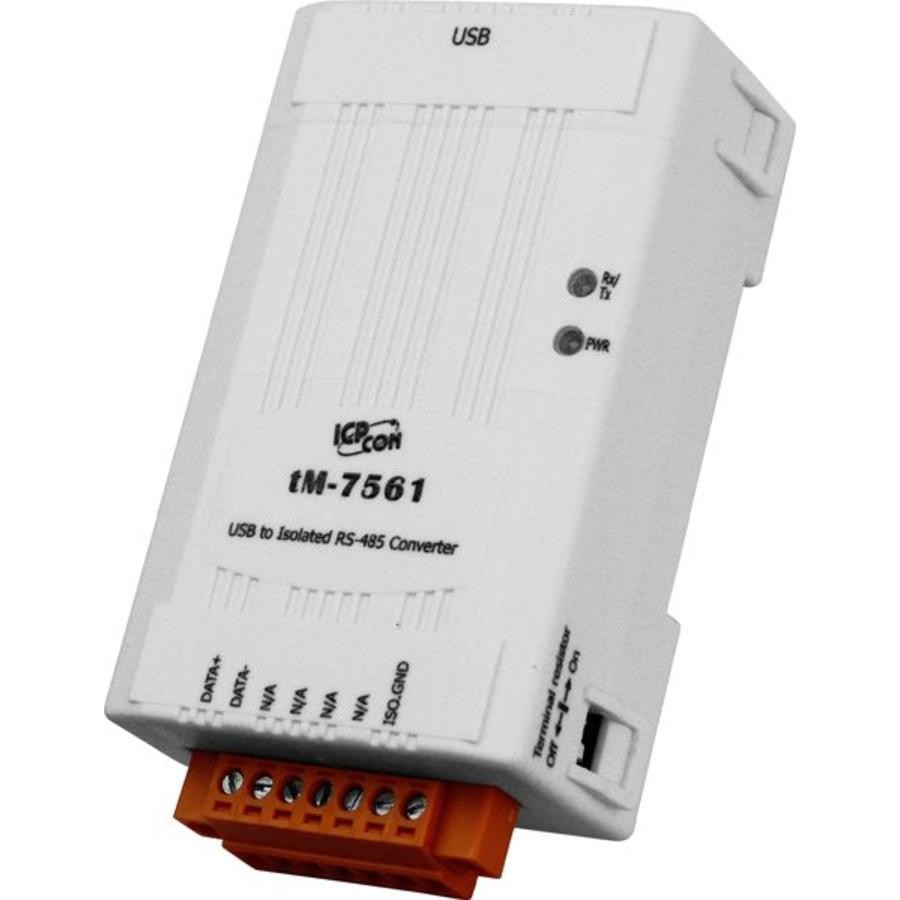

The tM-7561 is a cost-effective USB to RS-485 converter. Connecting the tM-7561 to a PC, you get one RS-485 port that allows you to access RS-485 devices through the USB interface. Like the I-7520, the tM-7561 contains "Self-Tuner" chip auto-tunes the baud rate and data format to the RS-485 network. The tM-7561 module derives its power from the USB port and doesn't need external power adapter.
