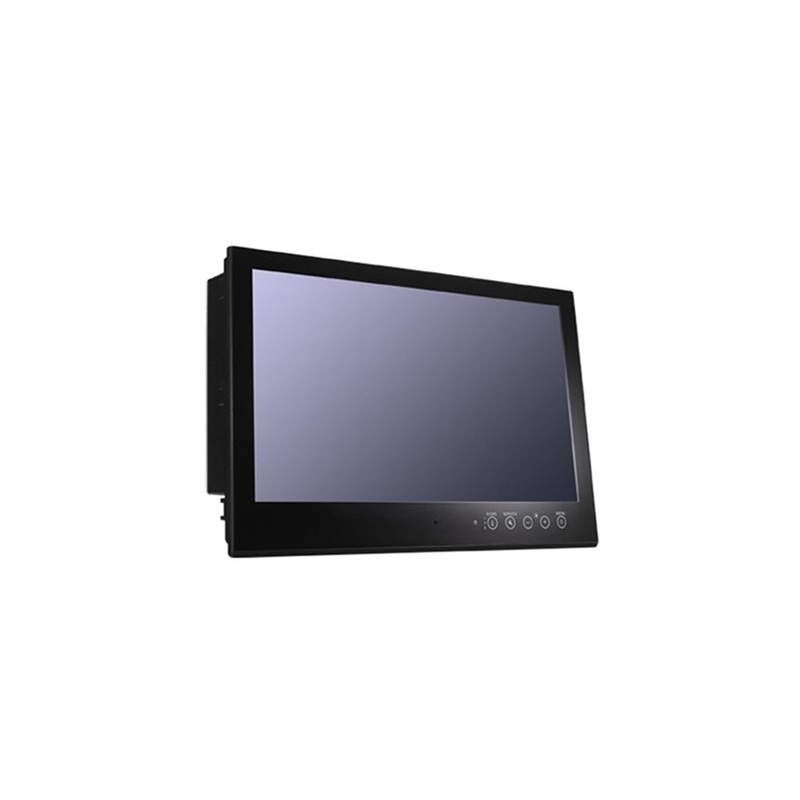

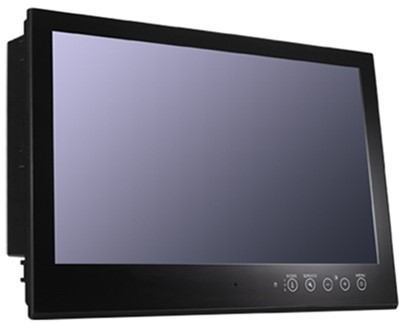

24-tums LCD-skärm med 300-nits, kapacitiv beröring, damm och läckagesäker IP54, IP20 bak, dubbla AC / DC-ingångar,
28 435,00 SEK
Ekskl. moms
24" LCD metal monitor, IP66 foran, IP20 bagside
1920 x 1080
300 nits, 5000:1, 16:9
LED backlight
Responstid: 25ms
visnings vinkel: 178°/178°
PCAP Capacitive touch, 4 points

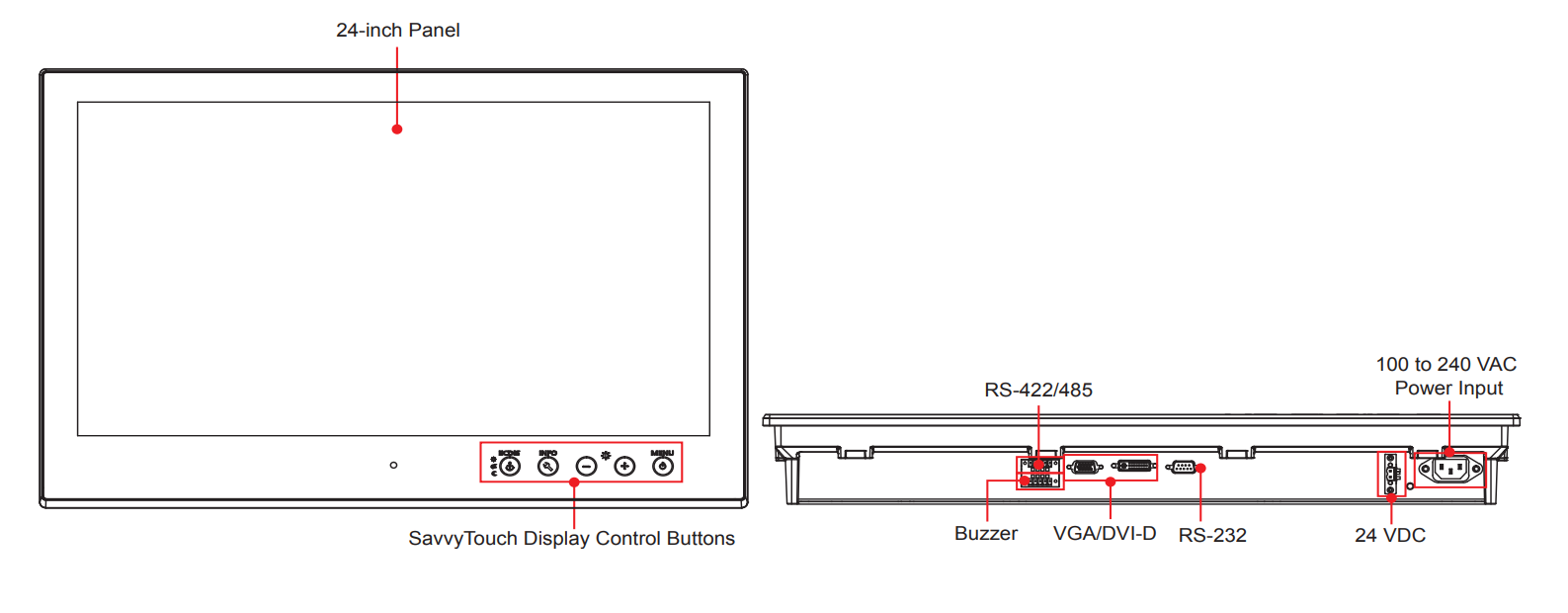

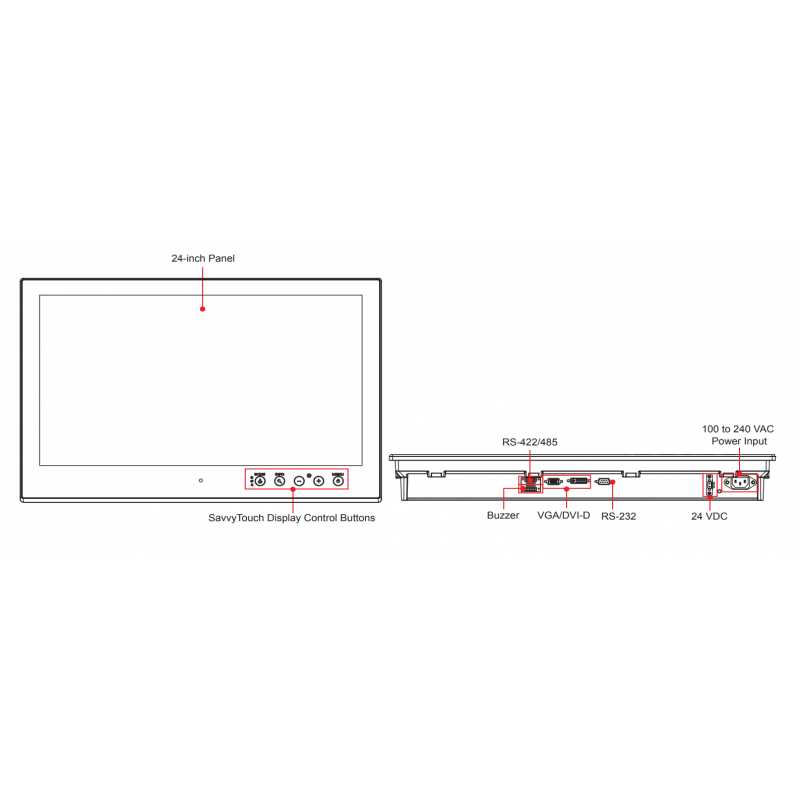

1 x RS-232 (DB9 male)
1 x DVI-D (29-Pin DVI-D hona)
1 x VGA (15-Pin D-sub femlae)
1 x RS232/422/485 (software selectable terminal block)
Forsyning: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55°C (5 to 131°F)

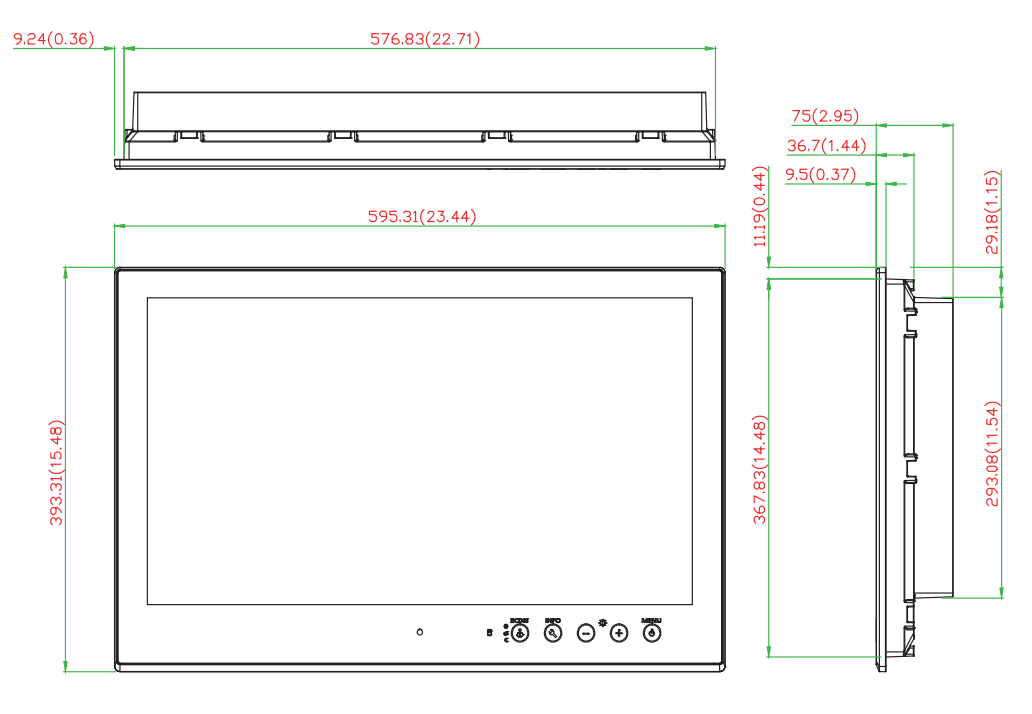

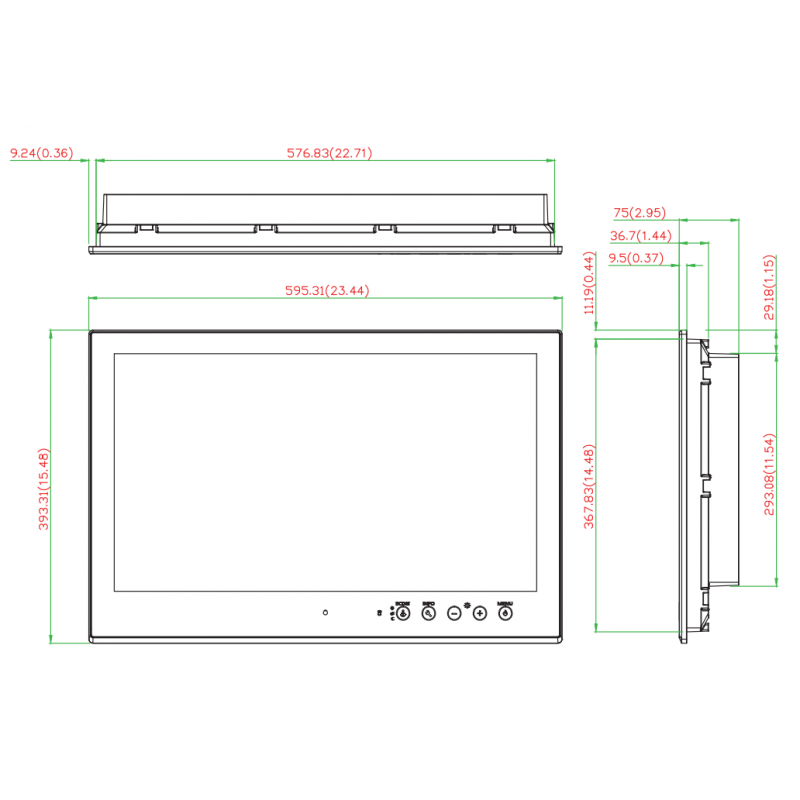

595 x 393 x 75 mm
Vægt: 9,570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx+, Tx-, Rx+, Rx-, GND
Optional: RS-485-2w: Data+, Data-, GND
Optional: RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Antal
På vägen in
close
close
Specifikationer
| Antal farver | 16.7M (8-bit/color) |
|---|---|
| Driftstemperatur | -15 to 55°C |
| Forsyning | 100 to 240 VAC, 24 VDC (18 to 30 V) |
| I/O | 1 x DVI-D, 1 x VGA |
| Kontrast | 5000:1, 300 cd/m2, 16:9 |
| Porte | 1 x RS-232, RS-232/422/485 ports x 1, software-selectable (terminal block) |
| Touch | Capacitive touch, 4 points |
| Vikt | 9,570 g |
