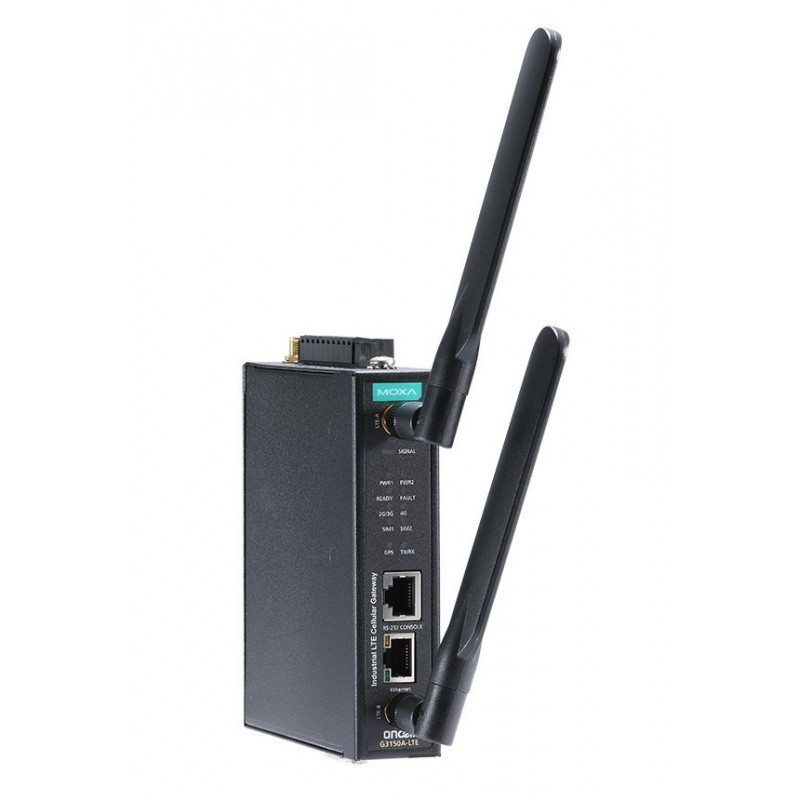

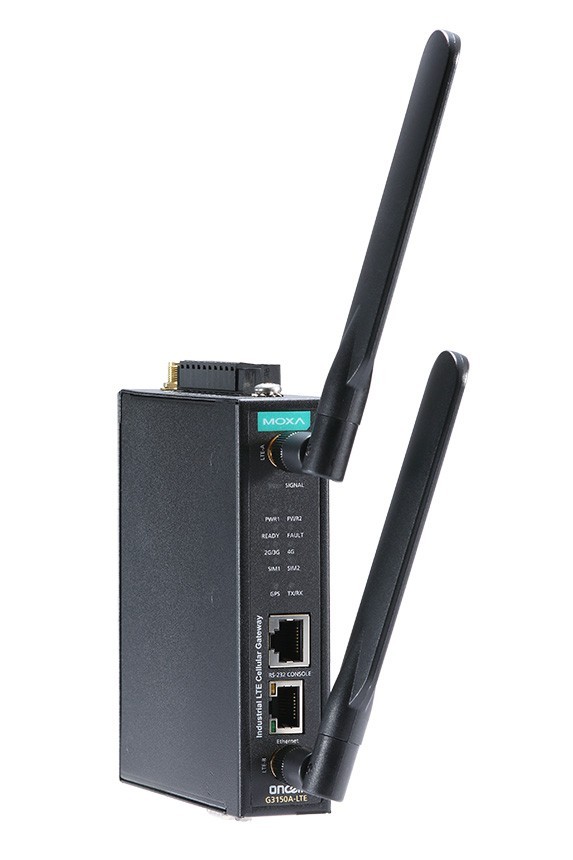

En port industriell LTE Gateway, RS232 / 422/485, -30-70 ° C, MOXA OnCell G3150A-LTE-T
5 764,00 SEK
Ekskl. moms
1 port LTE seriella till Ethernet gateway / modem, RS232 / 422/485
GSM / GPRS / EDGE / UMTS / HSPA / LTE
Stöder VPN och virtuell comport
Arbetstemperatur -30 -70 ° C
IP30 tätt
Levereras via 12-48 VDC
DIN-skena (fäste medföljer)
Antal
På vägen in
close
close
Specifikationer
| Övrig | RS-232 TxD, RxD, RTS, CTS, DTR, DSR, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND |
|---|---|
| Baudrate | 75 bps to 921.6 kbps |
| Dimensioner | 126 x 30 x 107.5 mm |
| Driftstemperatur | -30 to 70°C |
| Firewall | NAT, port forwarding, IP/MAC/Port filtering |
| Forsyning | 12 to 48 VDC |
| I/O | I/O interface Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC Digital Inputs 2 electrically isolated inputs• +13 to +30 V for state “1” • +3 to -30 V for state “0” |
| Interface | Antenna Connectors: 2 SMA female, MIMO for LTE GNSS: 1 SMA (female), GPS (1575.42 MHz), GLONASS (1602 MHz) Console Port: RS-232 (RJ45). Ground Screw: M5. Reset Button: Power Reset |
| Materiale | Housing Metal, providing IP30 protection |
| Netværk | LAN: Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45 |
| Protokol | ICMP, DDNS, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, SNTP, ARP |
| Standarder | GSM/GPRS/EDGE/UMTS/HSPA/LTE |
| Stik | Number of Ports 1 Serial Standards RS-232/422/485, software selectable Connector DB9 male |
| Vikt | 492 g |
1 ports LTE seriel til ethernet gateway/ modem, RS232/422/485
