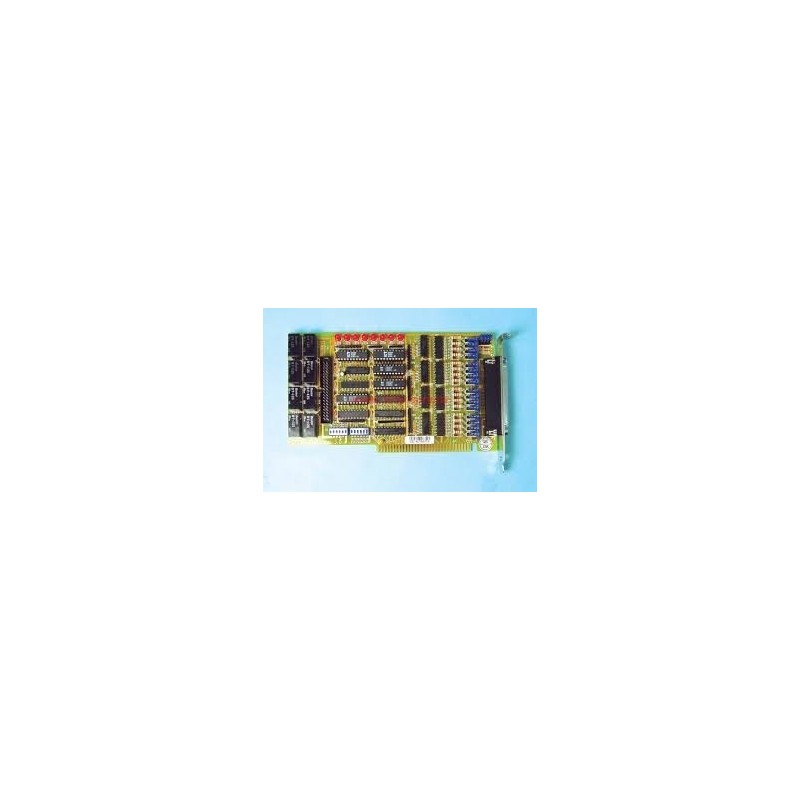

8 Reläutgångar + 16 Optoisolerade digitala ingångar
1 906,00 SEK
Ekskl. moms
Reservdel
Varje kanaler kan vara programmerade för att vara inmatning eller utgång
Programvaru Rutiner som enkelt tillhaneeedahålls Länk till högnivåprogram
Byt valbar avbrottsnivå (IRQ2 ... IRQ7)
Presentable de-studsningstid i avbrott Fashion
10k Pull-Up-motstånd För varje kanal
Inlog pi-426
Antal
Fysiskt i lager
close
close
16 Optically Isolated Digital Inputs
And 8 Relay Outputs
Digital Input:
Input Chanenel 16 Optically isolated chanenels (2 ports)
Input Mode: Voltage or dry contact input
Voltage Input:+1.5VDC(low) /+3VDC to 24VDC(high)
Dry Contact Input: External or internal +12VDC
Relay Output:
Output Chanene: 8 Chanenels
Relay Type: DPDT electro-mechaneical DIP relay
Terminal Form: Normal-Open, Normal-Closed, Common
Max. Contact Rating: 220V Voltage:
DC/AC Current: 1A DC / 0.5A AC
Mechaneical:
Dimensions: 1180.0 mm X 107.2 mm
Net Weight: 140 g
Board Type: 2 layer P.C.B
Power Supply: +5V, +12V
Consumption: +5V@200 mA max, +12V@ 400 mA max
Environmental:
Operating Temp.:32 to 140F(0 to 60° C)
Storage Temp.:4 to 248F(-20 to 120° C)
Humidity: 10%~90%
Software:
Furnished utilities diskette contains routines,
examples and calibration programs.
Allows foreground or background operation.
Provides comprehensive C, Basic, Assembly libraries
