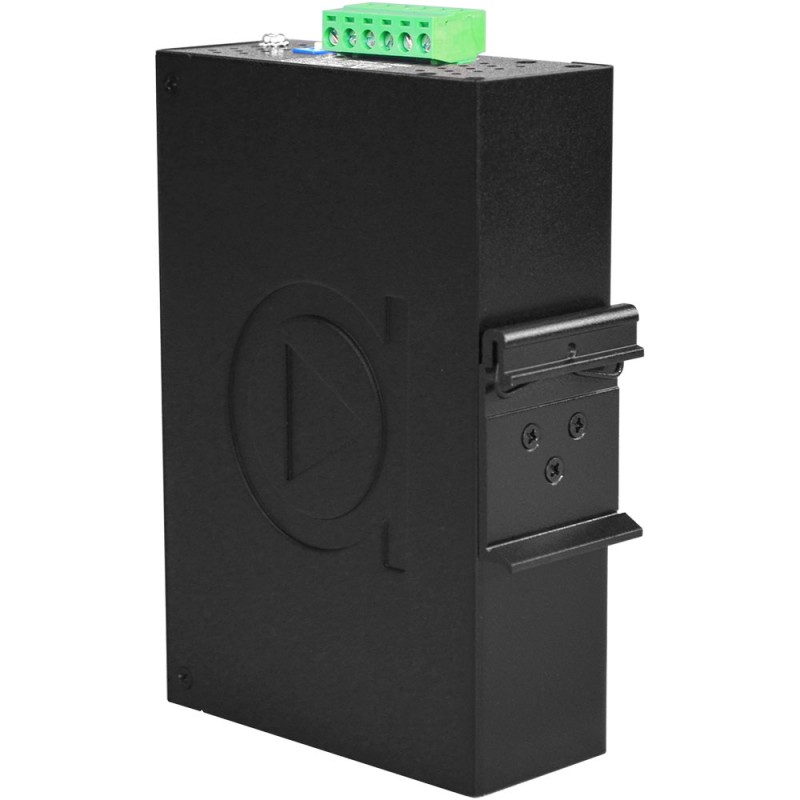

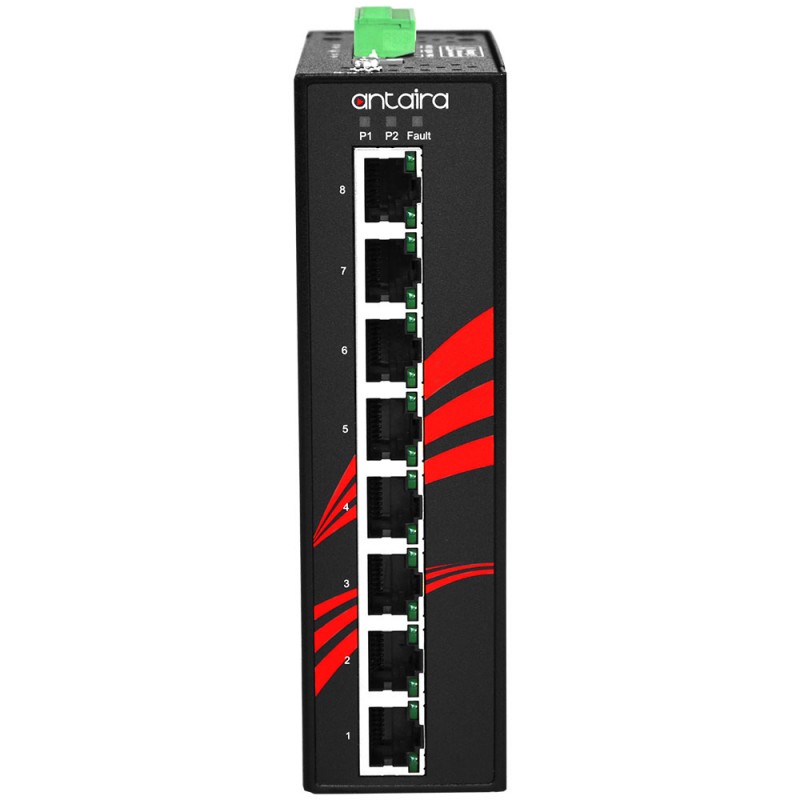

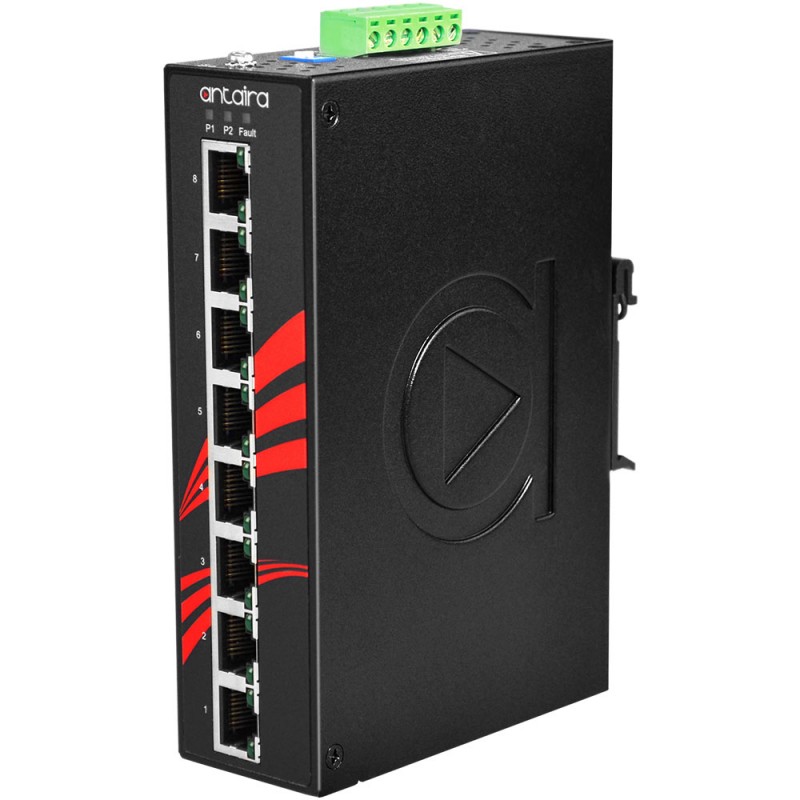

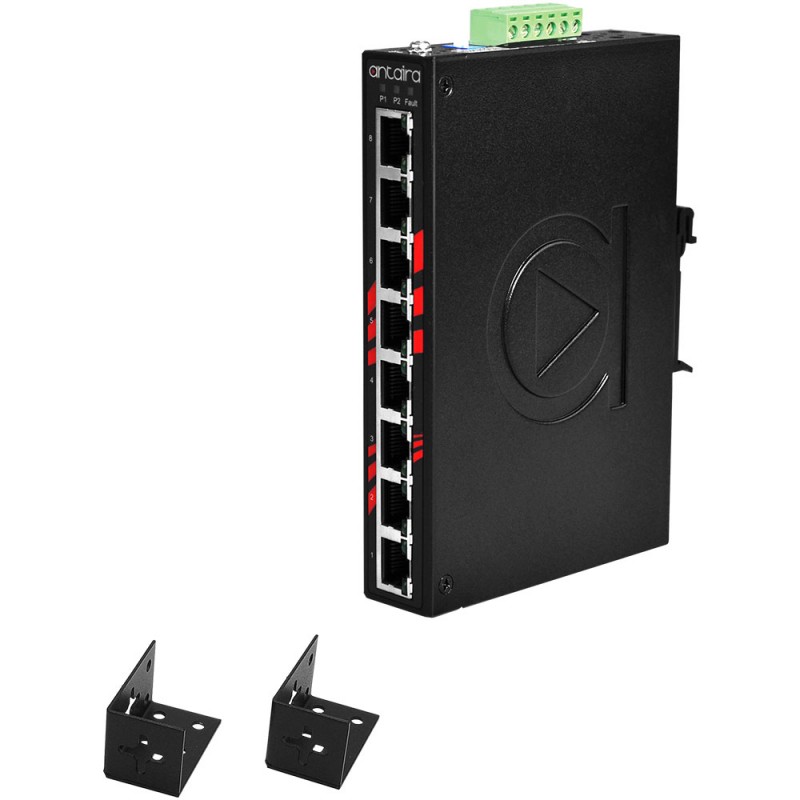

8-port industriell Gigabit-omkopplare med PoE +, ostyrd, 12-36VDC
4 062,00 SEK
Ekskl. moms
8 x 10/100 / 1000Base-T (X) RJ45
PoE (P.S.E.) porter
IEEE 802.3at
Upp till 30 watt per Port
9,6Kbytes Jumbo Frame
Matningsspänning: 12 ~ 36VDC
Auto-Negotiation & Auto-MDI / MDI-X
Store-and-Forward Transmission
Flow Control
IP-30 kabinett
DIN-skena och väggmontering
UL klass I, Division 2 Certifierad
Antal
På vägen in
close
close
Specifikationer
| Chok/Vibration | IEC60068-2-32, IEC60068-2-27 |
|---|---|
| Dimensioner | 41.0 x 144.3 x 94.9 mm |
| Driftstemperatur | STD: -10° to 60°C |
| Luftfugtighed | 5% to 95%, (non-condensing) |
| Montering | DIN-skinne og væg montering |
| Netværk | 10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6 |
| PoE | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End span, MDI-X Alternative A) |
| Porte | 8 x RJ45, 10/100/1000BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Standarder | IEEE 802.3 10Tx Ethernet IEEE 802.3U 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3x Flow Control for Full Duplex IEEE 802.3at/af PoE (Power-over-Ethernet) |
| Strømforbrug | 10 Watts (no PD included) |
| Strømforsyning | 12-36VDC Redundant input, PoE output 30W @ 12~36VDC (per PoE port) |
