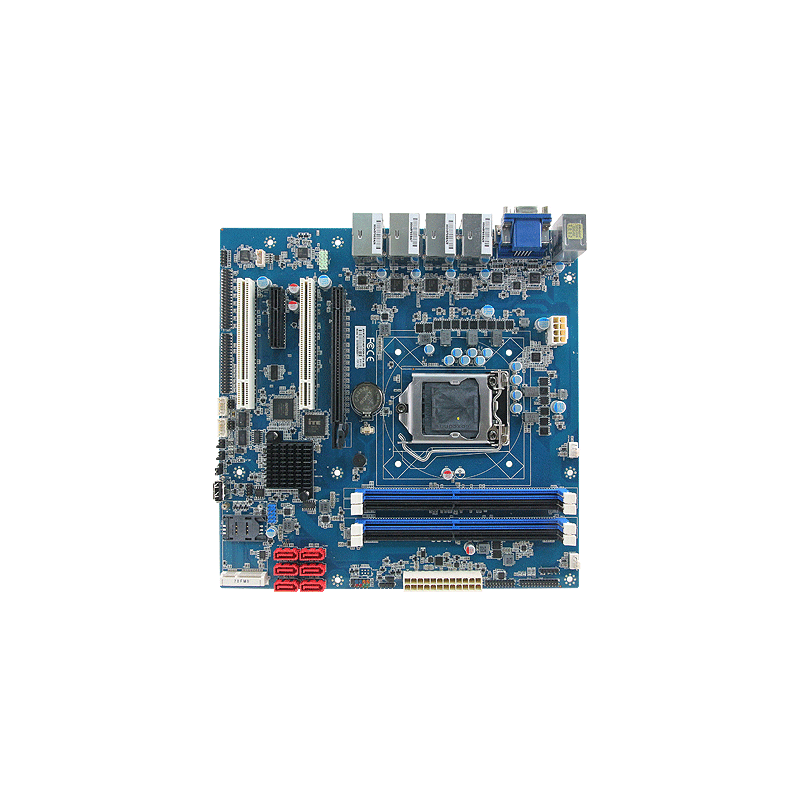

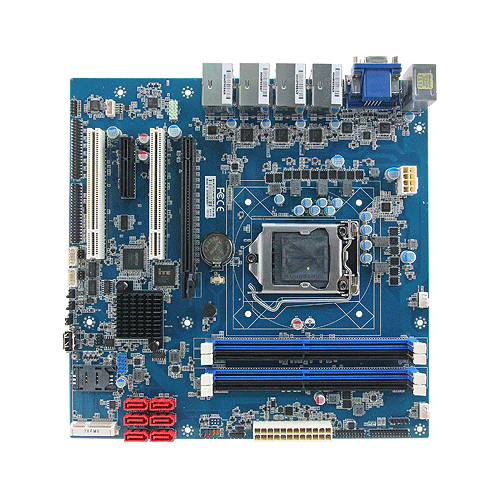

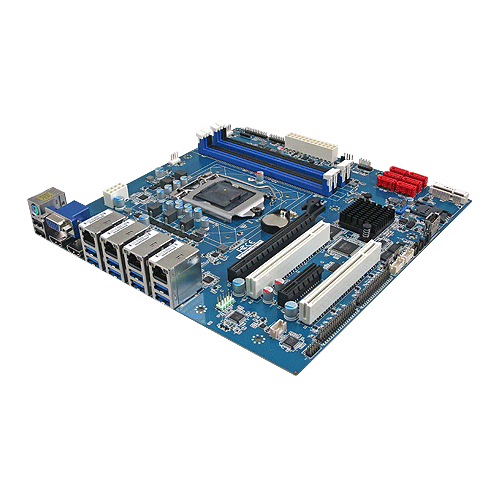

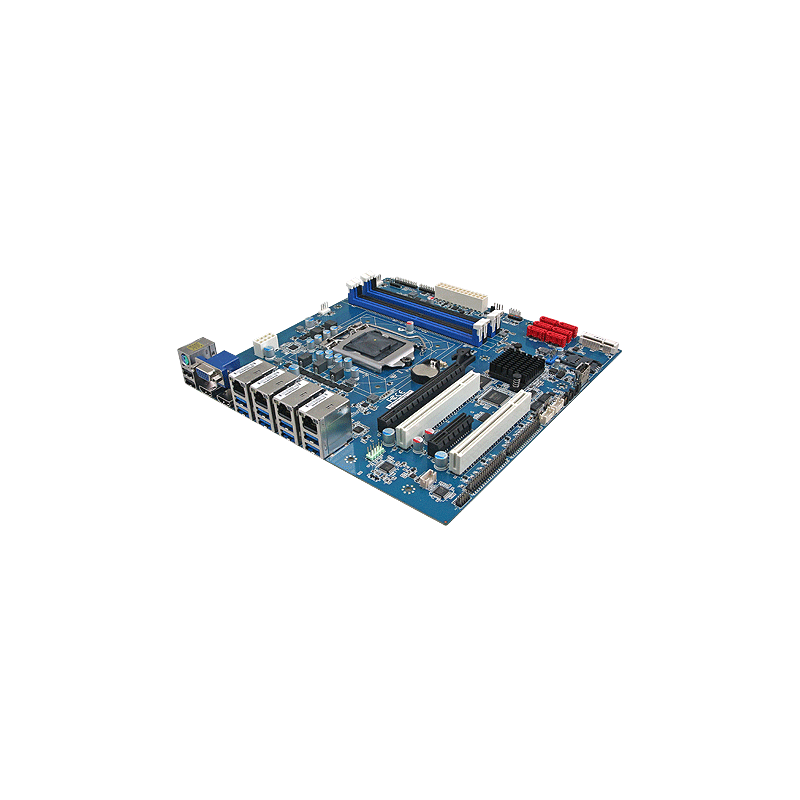

Micro ATX moderkort Intel C236, 2 x PCIex, 2 x PCI, 8 x RS232, 2 x RS232 / 422/48513 x USB
Ring 042 14 10 85 för pris
Ekskl. moms
Intel® 6 / 7th Generation Core ™ -process (Max TDP vid 95W)
Intel® C236 Chipset
4 x 288-stifts DDR4 2400MHz DIMM stöder upp till 64 GB (ECC-minne som stöds av CPU)
1 x VGA, 2 x HDMI 1.4
1 x Full-PCI-e-stöd SATA / PCI-e x1 2.0-signal) med SIM-kortplats
1 x PCI-e x 16, 1 x PCI-e x 4, 2 x PCI
5 x USB2.0, 8 x USB 3.0
8 x RS232
Support RAID 0, 1, 5, 10
Inombord Infineon SLB9665
support TPM 2.0ATX Ström
Antal
Fysiskt i lager
close
close
Specifikationer
| CPU | Intel® LGA1151 Socket Supports 6/7th Generation Core™ / Intel® Xeon®Process E3-1200 v5/6 Family (Workstation) / Intel® Pentium® / Celeron ®Processors (Max. TDP at 95W) |
|---|---|
| Chipset | Intel® C236 Chipset |
| Övrig | ACPI Single power ATX Support S0, S3, S4, S5 Power Type AT/ATX |
| Digital I/O | 1 x 16-bit GPIO |
| Dimensioner | (L x W) 9.6" x 9.6" (243.84mm x 243.84mm) |
| Driftstemperatur | 0~60°C (32~140°F) |
| Ethernet | Ethernet LAN Port 4 x RJ-45 Chipset 1 x Intel® I219LM Gigabit Ethernet PHY, 3 x Intel® I211AT PCI-e Gigabit |
| Forsyning | +12V/+5V/5VSB/+3.3V/-12V |
| Grafik | Chipset Intel® 7th Generation CPU integrated HDMI + HDMI, HDMI + VGA, VGA + HDMI |
| Hukommelse | 4 x 288-pin DDR4 2400MHz DIMM supports up to 64GB |
| Lyd | Chipset Realtek ALC662 HD Audio Decoding Controller Audio Interface Line-in, Mic-in, Line-out by Front Audio Audio Amplifier 2 x 3W Amplifier |
| Opløsning | VGA: 2048 x 1536 @ 50Hz HDMI 1.4: 4096 x 2160 @ 24Hz, 2560 x 1600@60Hz |
| PCI | 1 x PCI-e x 16 1 x PCI-e x 4 2 x PCI |
| Porte | 8 x RS232 by 2 x 40pin pin header 2 x RS232/422/485 |
| SATA | 6 x SATA III |
| SIM kort | 1 x SIM card slot |
| Tastatur/mus | 1 x PS/2 Keyboard or 1 x PS/2 Mouse |
| Udgange | Multiple Display Triple Displayor, 2 x HDMI, 1 x VGA (HDMI 1,4) |
| USB | 5 x USB 2.0 8 x USB 3.0 |
| Vikt | 0.6 Kg |
| Watchdog | H/W Reset, 5~255 seconds/5~255 minutes |
Super kompakt Micro ATX moderkort med PCI ex och PCI förlängning. Andra modeller och lösningar kan erbjudas.
