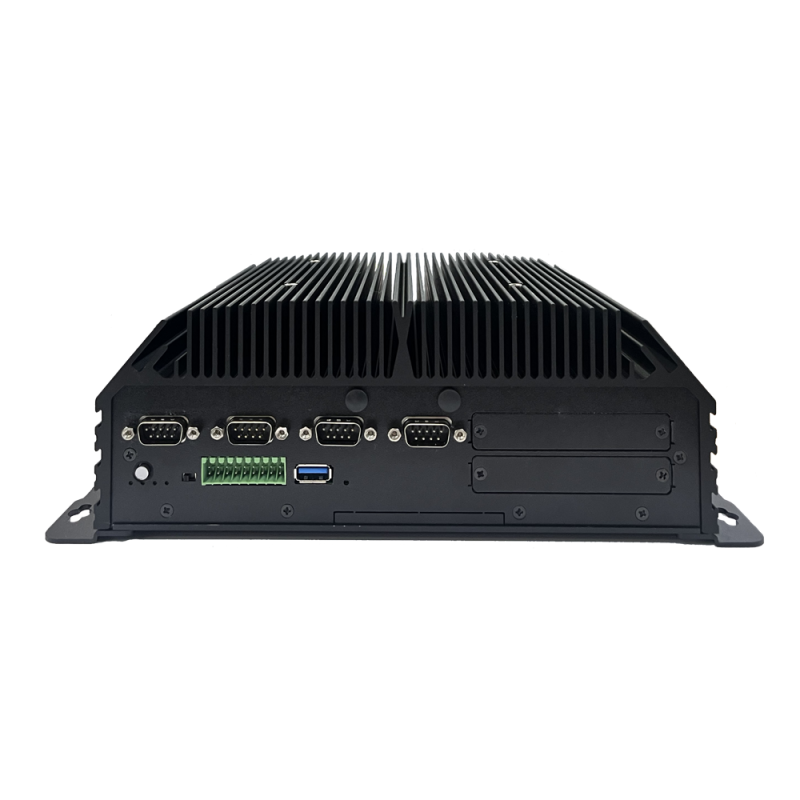

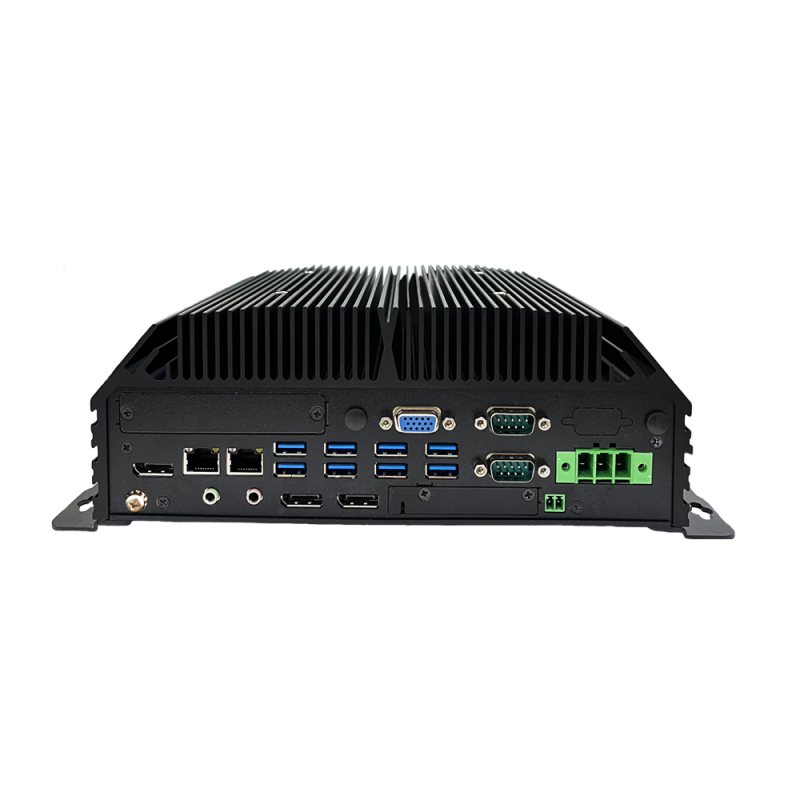

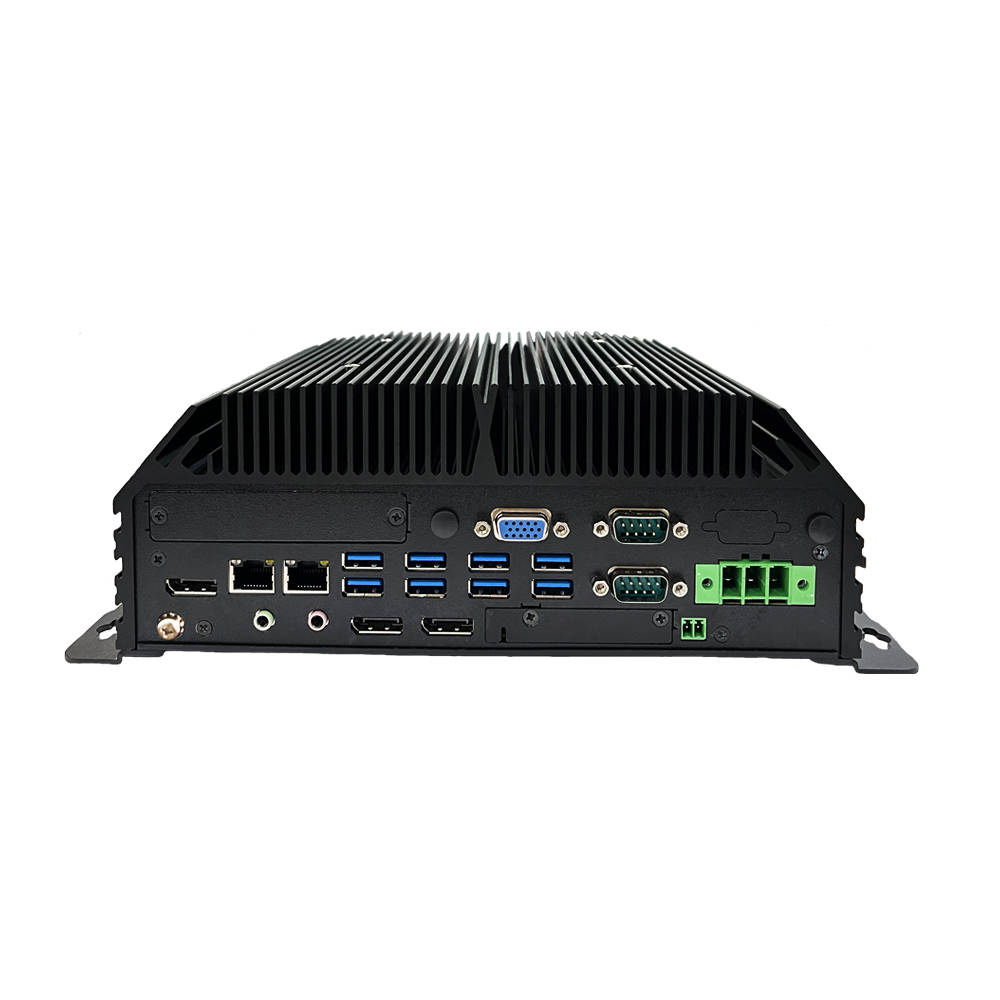

Fläktlös inbyggd PC Gen. 13/12 LGA1700, 2x2,5 Gbe, 3xDP, 1xVGA, 9~48V DC, -40°C ~ 70°C, 9xUSB3.2, 6xRS232/422/485 RAID
Ring 042 14 10 85 för pris
Ekskl. moms
Intel Gen. 13/12 LGA 1700 35W-processorkärna/Pentium/Celeron
Intel R680E
TPM 2.0
Max. 64 GB RAM

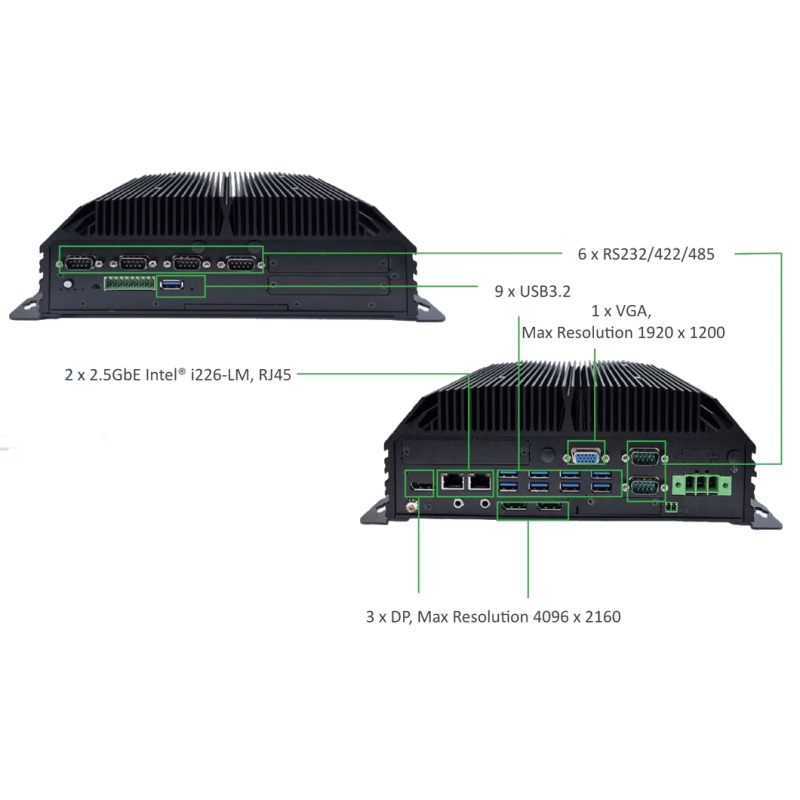

Quad-skärm: 1xVGA (1920x1200), 3xDP 4096x2160), (3xHDMI 4096x2160 vid särskild förfrågan)
9 x USB3.2 (Gen.2)
6 x RS232/422/485
2 x 2,5 GbE Intel i226-IT
4 x GbE Intel i350-AM4 eller 4 x GbE POE+ (Expansionsmodul på begäran)
Ljudlinje in/ut
8 x isolerad DI och 8 isolerad DO (2 x 9-polig plint)
2x 2,5" Sata III
2 x M.2
2 x SIM-uttag
-40°C ~ 70°C
240x200x88mm
9-48V DC-ingång med tändningskontroll
CE/FCC klass A
OS-stöd: Windows 10 IoT, Windows 11 (IoT/Professional), Linux
Antal
På vägen in
close
close
Specifikationer
| CPU | 13th/12th Gen Intel® Core™/Pentium®/Celeron® 35W LGA 1700 Processors, |
|---|---|
| Chipset | Intel® R680E |
| Övrig | with Ignition Control, |
| BIOS | AMI 256 Mbit SPI Flash |
| Antenne | 4x Antenna Hole |
| Chok/Vibration | Vibration 5Grms, 5-500Hz, 0.5hr/axis Shock 50G, Half-sine 11ms |
| Digital I/O | 8 x Isolated DI and 8 x Isolated DO, 2 x 9-pin Terminal Block |
| Driftstemperatur | AT |
| Ethernet | 2 x 2.5GbE Intel® i226-IT, RJ45, (4 x GbE Intel® i350-AM4 or 4 x PoE+ Intel® i350-AM4 optional IO) |
| Grafik | 3 x DP, 1 x VGA (3xHDMI optional contact sales) |
| Indgangsspænding | 9-48V DC Input with Ignition Control, |
| Luftfugtighed | 10% ~ 90% (non-condensing) |
| Lyd | 1x Line-out, 1x Mic-in |
| Montering | Wall Mount (Additional Mounting Kit) |
| OS SUPPORT | Windows 10 IoT, Windows 11 (IoT/Professional), Linux |
| RAID niveau | RAID 0/1/5/10 |
| SIM kort | 2 x Mini-SIM Holder |
| USB | 9 x USB 3.2 (Gen2) |
| Vikt | 3.9 kg |
| Protection | Over Voltage Protection (OVP) up to 52V Over Current Protection (OCP) up to 20A Reverser Voltage Protection (RVP) up to -48V |

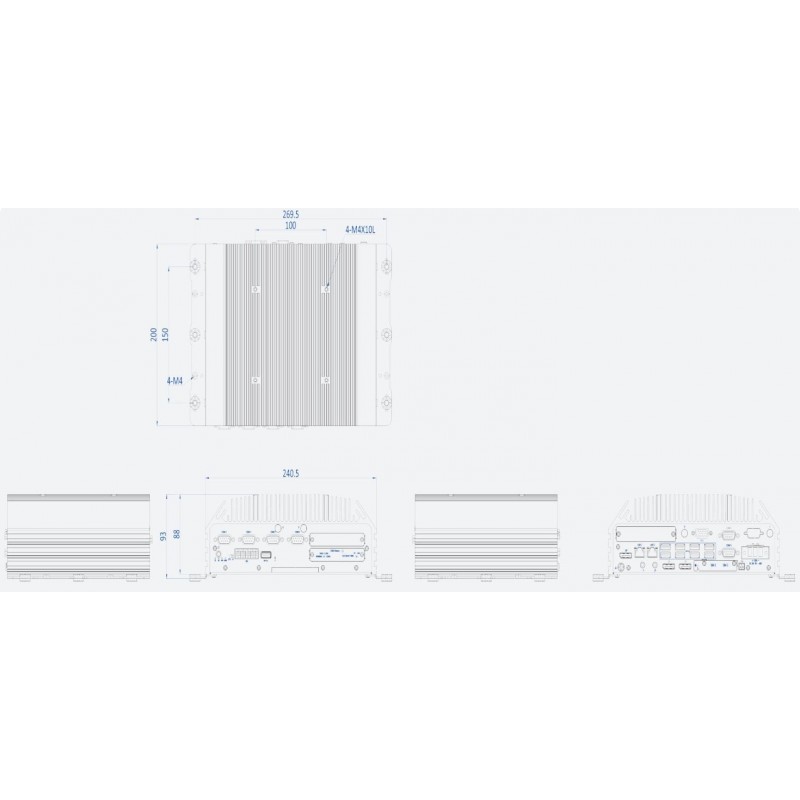

| Dimension | 240 x 200 x 88mm, ( |
| Certification | CE/FCC Class A |
| Material | Aluminum & SECC |
| Serial Porte | 6 x RS232/422/485 |
| RAM | 2 x 262-PIN SO-DIMM Dual Channel DDR5 4800/5600 (ECC and Unbuffered) Max. 64GB |
| Display | Multi Display 4, VGA, 3xDP |
| Expansion | M.2 |
