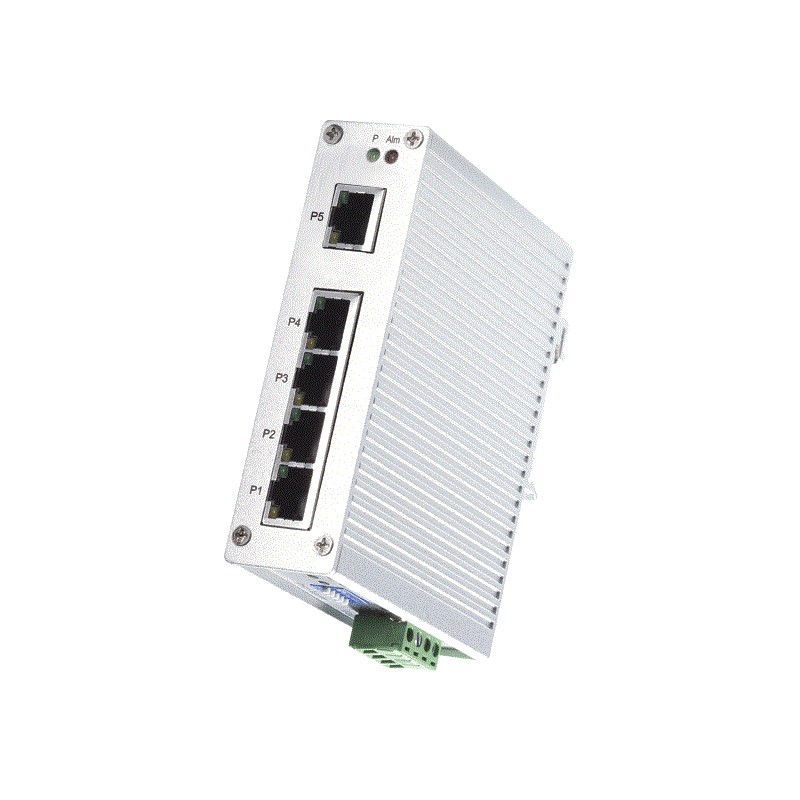

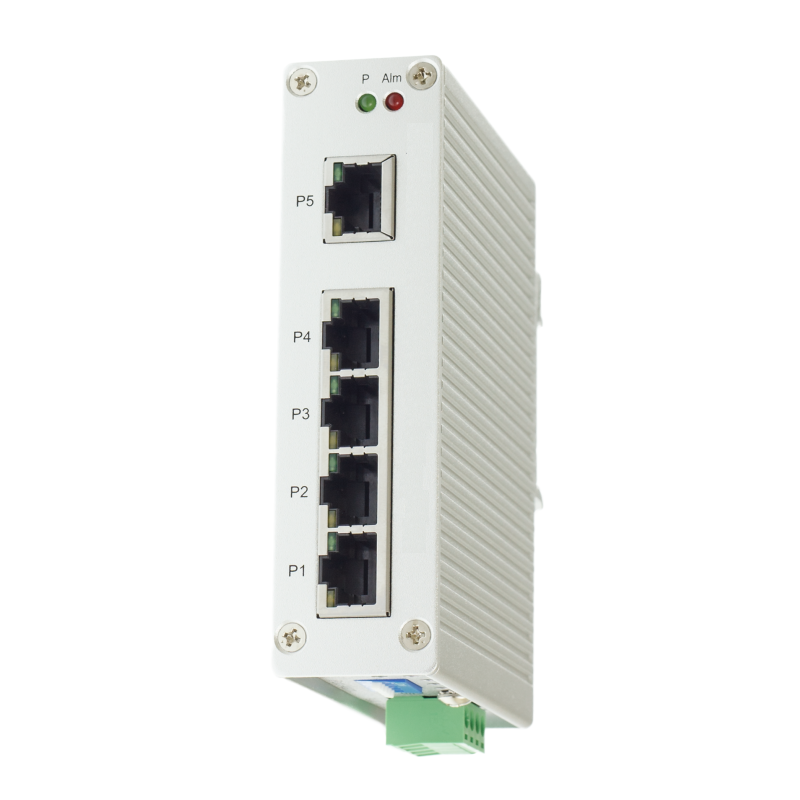

5 Port Unhaneaged Industrial Switch. 5 x 10/100Mbit. -25 - +70°C. DIN-skena, 18-32VDC
1 168,00 SEK
Ekskl. moms
5 x 10 / 100TX portar med Auto MDI / MDI-X
Bra storlek för industriell användning
18-32VDC
reläport larma
Support AC 1.5KV Hi-pot isoleringsskydd IP31 Aluminium
Arbetstemperatur temperatur -25 till 70 grader
Dimensioner: 111.8mm (H) x 30 mm (B) x 98.2mm (D) Review Vikt: 290g låda utan
Antal
Fysiskt i lager
close
close
Specifikationer
| Alarm | DIP 1~5: Port Event Alarm Control On: Enable port link down alarm Off: Disable port link down alarm |
|---|---|
| Approval | FCC Class A, CE/EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 |
| Chok/Vibration | IEC60068-2-27 , IEC60068-2-6 |
| Driftstemperatur | -25 ~ 70O C / -40 ~ 75O C (Udvidet temperatur) |
| Forbindelse | 10/100 Base-TX: RJ-45 |
| Forsyning | DC 18~32V with reverse polarity protection |
| Interface | 5 x 10/100 Base-TX with Auto MDI/MDI-X, Auto-Negotiation function |
| Kabel | Cat.3, Cat.4, Cat.5 unshielded twisted pair or shielded twisted pair cable. The Link distance is maximum 100 |
| Standarder | IEEE802.3 10Base-T IEEE802.3u 100Base-TX |
| Switch | 3.2Gbps switch fabric |
| Vikt | 372g with package 290g without package |
