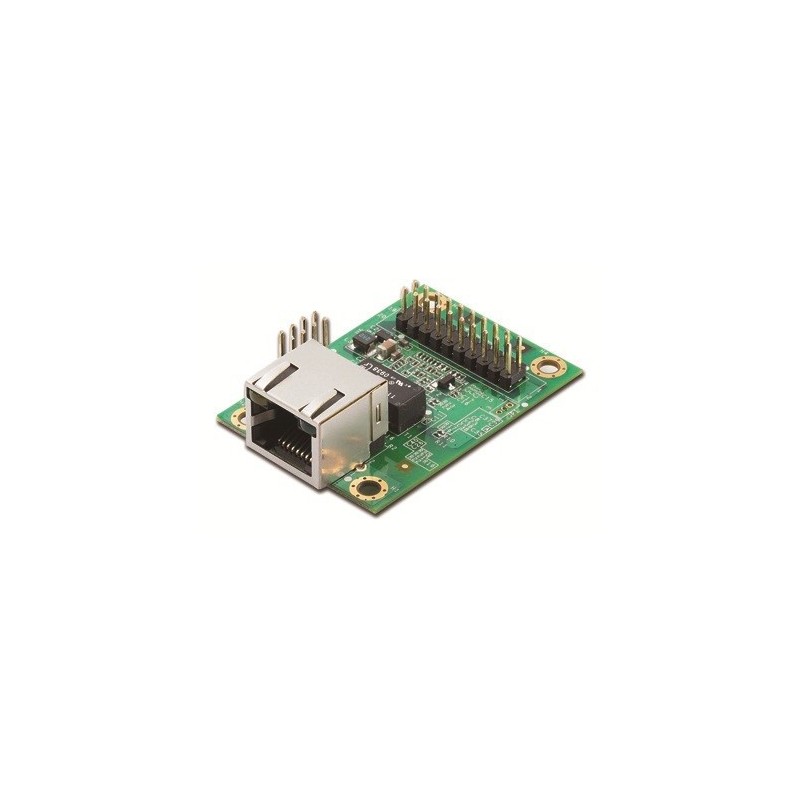

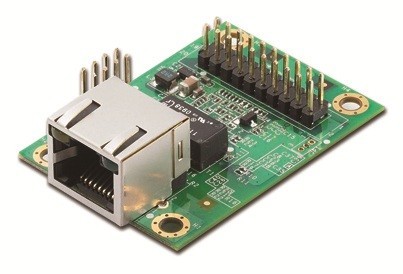

Embedded Device Server 10/100 med RJ45, MOXA MiinEport E3
537,00 SEK
Ekskl. moms
MOXA MIINEPORT E3
10/100 Mbps embedded serial device servers with RJ45
IEEE 802.3af compliant PoE pass-through
Use Moxa’s high quality and reliable second generation MiiNe SoC
Versatile choice of operation modes fulfill specific application requirements
Green design with extremely low power consumption
MiiNePort NetEZ Technology makes integration incredibly easy
Highly compact embedded device module
Support IPv6
Antal
På vägen in
close
close
Specifikationer
| CPU | 32-bit ARM Core |
|---|---|
| Övrig | TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
| Dimensioner | 35 x 52.5 x 18 mm |
| Driftstemperatur | 0 to 55°C |
| Flash | 2 MB built in |
| Forsyning | Input Voltage 3.3 to 5 VDC Input Current 157 mA @ 3.3 VDC |
| Hastighed | 10/100 Mbps, auto MDI/MDIX |
| Hukommelse | 4 MB built in |
| Isolation | 1.5 kV built-in |
| Porte | 1 |
| Stik | RJ45 (magnetic) |
| Vikt | 12 g |
Moxa Miinort E3
10/100 Mbps Embedded Serial Device Servers med RJ45
